How Transformer Radiators Help Keep Power Plants Cool and Safe
In every power plant, transformers play a critical role in stepping down voltage levels for efficient power transmission. However, during this process, transformers generate a significant amount of heat. If not properly managed, this heat can lead to reduced efficiency, component damage, and even system failure.To tackle this, transformer radiators are used — specialized cooling systems that help maintain safe operating temperatures. In this blog, we’ll explain how transformer radiators work, why they’re essential, and how companies like Chaitanya Enterprises provide industry-grade solutions to keep power systems running smoothly.
Why Do Transformers Heat Up?
Transformers heat up primarily due to two kinds of internal losses:
-
Core losses: These include hysteresis and eddy current losses in the transformer’s magnetic core.
-
Copper losses (I²R losses): These occur when current flows through the windings and meets resistance.
As transformers carry higher loads, these losses increase — producing heat that must be dissipated to protect the system.
The Need for Heat Dissipation in Power Plants
If this heat isn’t removed effectively:
-
The insulating oil and materials inside the transformer can break down.
-
It can lead to thermal runaway — a dangerous situation where heat buildup accelerates rapidly.
-
The lifespan of the transformer reduces, causing costly downtime and replacements.
This is where transformer radiators come into play.
What is a Transformer Radiator?
A transformer radiator is a cooling component attached to the transformer tank, usually on oil-immersed transformers. These radiators increase the surface area available for heat dissipation and cool the transformer oil, which in turn cools the internal parts of the transformer.
Real-World Analogy:
Think of it like a car radiator: as the engine heats up, the radiator helps cool down the engine oil to maintain safe operation. Transformer radiators do the same — but for heavy-duty power equipment.

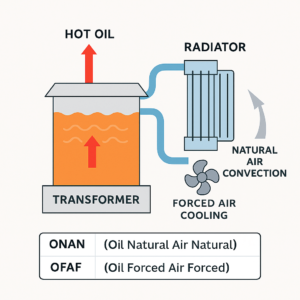

How Do Transformer Radiators Work?
Transformer radiators operate on either natural or forced circulation of oil and air.
1. Natural Cooling – ONAN (Oil Natural Air Natural)
-
Hot oil rises to the top of the transformer and flows into the radiator.
-
As air passes naturally over the radiator fins, the oil cools down.
-
The cooler oil then flows back into the transformer.
2. Forced Cooling – OFAF (Oil Forced Air Forced)
-
Oil pumps and air fans are used to accelerate the cooling process.
-
Ideal for high-load applications where natural cooling isn’t sufficient.
Radiators typically consist of corrugated panels or pressed steel fins, designed for maximum heat transfer efficiency.
Benefits of Using Transformer Radiators
-
Efficient heat removal even under high electrical loads
-
Prevents overheating and fire hazards
-
Improves transformer efficiency and performance
-
Extends the service life of both the transformer and its insulating oil
-
Reduces maintenance costs and unplanned outages in power plants
About Chaitanya Enterprises
At Chaitanya Enterprises, we specialize in the design and manufacturing of transformer radiators for power plants, substations, and industrial applications. Our radiators are built using high-grade materials and customized to match client requirements — ensuring both reliability and long-term performance.
With a strong commitment to quality, timely delivery, and technical support, we are proud to be a trusted partner for transformer cooling systems across India.
